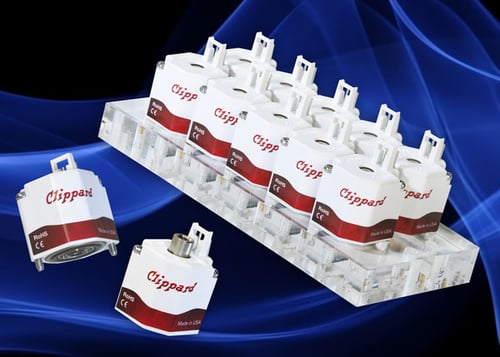

New Clippard ES Series

The new and improved Electronic Valves ES Series for Clippard features a compact footprint design combined with long life and exceptional leak resistance, improving reliability for most biomedical applications.

The ES series has large cross-sectional o-rings, minimal leak points, and proven poppet designs for ease of use. By reducing the possibility of contamination by mounting all hardware outside the flow path and none having the internal parts threaded during assembly, this product line is well-suited to improve reliability in a wide range of applications, including biomedical, dental, test equipment, oxygen control, textile, packaging, pressure control, automation, and portable systems.

Key Features:

• Over 1 billion cycles (under ideal conditions)
• 0.01 atm sccm leak rate
• No threads in the flow path
• Fast response - 5 to 10 ms (nominal)
• Close mounting - 7/8" on center, overall height less than 1"
• No anaerobic sealant
• Ideal for ultra-low leak applications
